SS316 Rotary Gear PumpMESX Series

Shri Maruti Precision Engineering Pvt Ltd is a large-scale manufacturer and exporter of SS Gear pumps putting all its effort for meeting the diversified need of clients since 1989. The Stainless Steel Gear Pump gained the highest popularity because of its optimal utility in all food grade usage and chemical plants. The materials used for producing SS Gear Pumps are of high quality, resulting in providing the corrosion resistance, long life etc. The Stainless-Steel Gear Pump can be maintained easily, no lubrication required and easily cleanable. The pump is being used for transferring corrosive, hygienic and viscous liquids.

Perfect solution for corrosive, hygienic and viscous liquids for transferring applications. Material of construction: gears, shaft and body- SS 316 with DU Teflon bushes, all food grade MOC

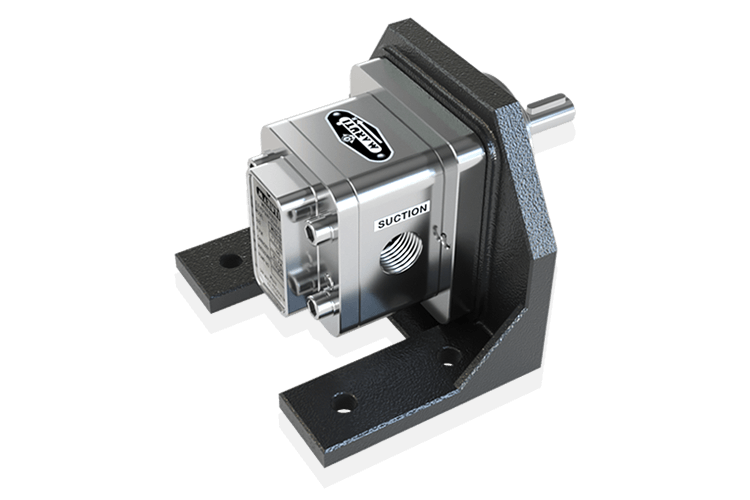

MESX Series - SS316 Rotary Gear Pump
360° View
  • Size: ¼” to 2.5” BSP screw connection ports
  • Capacity: 8 LPM to 300 LPM
  • Max working pressure: 10 bar
  • Gears: helical gearing arrangement
  • Seal: Teflon Gland pack or TC mechanical seal
  • Rotation: clock-wise and anti clock-wise
  • Material of construction: gears, shaft, and body- SS 316 with Teflon Coated DU Teflon bushes
  • Concept: Single Helical Gear Pump
  • Capacity: 8 LPM to 350 LPM
  • Size: 1/4″ to 2.5″ BSP Screw end (9 Different Sizes)
  • Shaft Seal: Mechanical & Gland Pack
  • Pressure: Up to 10 bar
  • MOC: All parts SS 316
  • Food and Beverages industries, Food grade liquid transfer application
  • Pharmaceutical Industries
  • Chemical industries
  • Paint industries, Cosmetic industries
  • Liquid like: Honey, Glucose, Liquid Sugar, Maple Syrup, Milk, Hand Wash Liquid, Adhesive & Sealant
